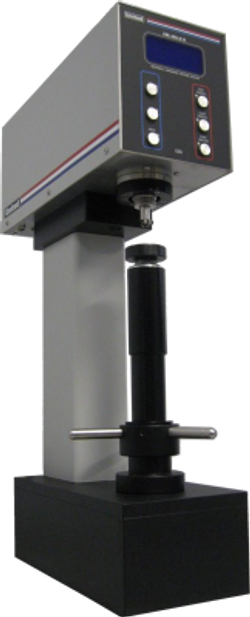

The Tru-Blue II is a digital twin Rockwell hardness tester that utilizes a closed loop load cell system. The closed loop load cell system has two main components. A glass scale is used to measure the depth of penetration and a load cell is used to verify the correct force is being applied. Having no dead weights, pivot points and knife edges to move out of adjustment, the Tru-Blue II can be moved to a new location without having to be re-calibrated. When mounted on the optional mobile stand, the Tru-Blue II becomes portable for use in different departments.
The Tru-Blue II comes standard with a Direct force certification of the hardware calibration with NIST traceability and a factory one-year indirect calibration for customer specified hardness testing scales.
Special Features:
-
Computerized closed loop control of force application
-
In-line depth measurement device and load cell
-
Capable of testing 30 different Rockwell scales
-
4 X 20 Bright vacuum fluorescent display
-
Statistical summary including average, range, standard deviation, high, low and number of tests
-
Auto correction of hardness values for cylindrical parts
-
Parts clamp used to secure irregularly shaped or oversive parts included
-
Parts IN/OUT of tolerance settings with adjustable audio alert
Specifications
Regular Scales:
A, B, C, D, E, F, G, H, K, L, M, P, R, S, V. Loads of 60, 100, 150 kg
Superficial Scales:
15N, 30N, 45N, 15T, 30T, 45T, 15W, 30W, 45W, 15X, 30X, 45X, 15Y, 30Y, 45Y. Loads of 15, 30 & 45 kg
Dwell Time:
3 ASTM E-18 dwell time settings, plus NIST SRM timing
Plastics Dwell:
In accordance with ASTM D-785
Machine Uncertainty:
Excluding test block and indenter variations, less than .01 point; corresponds to a 3.3% GR&R for a 3 point tolerance
Front Panel Controls:
Piezo-Electric switches
Conversions:
Built in ASTM E-140 conversion tables and ASTM A-370 tensile strenght values
Languages:
English, Spanish, French, German, Italian & Portuguese
Power Requirements:
100-240 VAC 50/60 Hz, Single Phase, 1 Amp
Vertical Capacities:
Available in 10, 14, 16, 18, 20 and 36 inch capacites
Throat Depth:
5.5 inches, available with 9.5 inches
Weight:
185 lbs to 250 lbs, depending on model
Standard Accessories
1 Combination C, A, D & N scale Diamond
1 1/16" Tungsten Carbide Ball Indenter
Clamping Sheild for large parts
One 2 1/2" flat anvil
One Raised Spot anvil
One "V" anvil
4 Rockwell Test Blocks
Optional Accessories
Printer
Dust Cover
Floor Stand
Foot Pedal
8" Table anvil
SPC Software Kit
4 Rockwell Test Blocks
Mobile Stand
